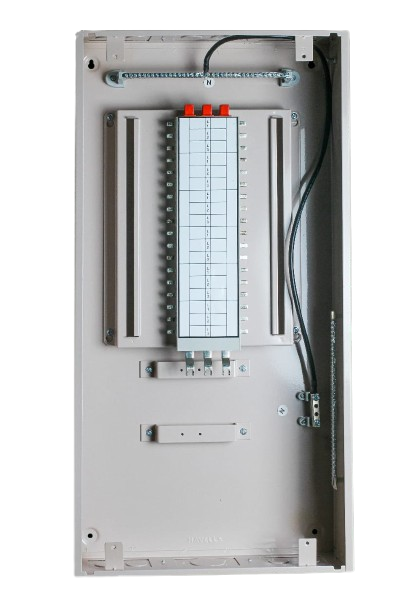

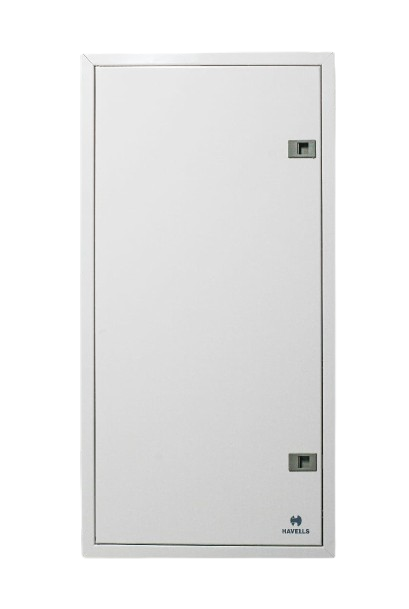

Havells Three Phase MCCB Incoming Outgoing MCB (Load Line) G Frame

Havells G-Frame Distribution boards provide a high-capacity solution for advanced industrial power management. This specialized system accommodates a robust G-Frame MCCB as the main incomer while supporting standard MCBs for outgoing branch circuits. Specifically, the G-Frame series is designed to handle significantly higher current ratings and fault levels than standard frames. Consequently, it is the ideal choice for heavy-duty manufacturing plants and large-scale infrastructure projects. By choosing the Havells G-Frame Distribution series, you follow IEC 61439-1 standards for low-voltage switchgear.

Why Use the Havells G-Frame Distribution System?

Heavy industrial environments demand switchgear that can withstand extreme short-circuit levels without failure. The Havells G-Frame Distribution system is engineered for exactly this purpose. It bridges the gap between high-capacity G-Frame MCCB protection and branch-level circuit distribution. Therefore, it provides a seamless transition from the main power source to high-draw industrial machinery. You can find more safety guidelines regarding high-capacity MCCB integration at the National Electrical Code website.

Moreover, this board offers unmatched structural integrity. The enclosure utilizes extra-thick, powder-coated steel to prevent mechanical damage and environmental corrosion. Because industrial work floors can be high-impact zones, this durability is essential for long-term operational reliability.

Technical Excellence of Havells G-Frame Distribution

This system features a high-conductivity busbar design made from high-purity copper. It is built to carry massive electrical loads without overheating at the connection points. Specifically, the G-Frame MCCB incomer supports much higher amperage than smaller F-Frame models. Additionally, the internal layout provides clearly marked sections for phase and neutral connections. This organization reduces the risk of accidental short circuits during complex maintenance procedures.

Furthermore, the board includes a “shrouded” busbar design to maximize user safety. This feature prevents accidental contact with live components while the protective door is open. Because the board has a spacious interior, electricians can route large-diameter incoming cables with ease. This extra “gutter space” is a hallmark of the premium quality found in the Havells G-Frame Distribution range.

Ideal Applications for the G-Frame Load-Line

Where should you install this hardware? It is perfect for main distribution in chemical plants, steel mills, and multi-specialty hospitals. Specifically, it manages the power requirements of heavy HVAC chillers and large industrial pump sets. Moreover, many large data centers use these boards for secondary power distribution due to their high breaking capacity. Because it supports a G-Frame MCCB incomer, it can safely handle the massive surge currents common in heavy motor startups.

Installation and Standard Compliance

The unit supports both floor and wall mounting, depending on the enclosure size. It integrates perfectly with Havells G-Frame MCCBs and the Euro series MCBs for a unified protection system. Furthermore, this product complies with IS 8623 guidelines for factory-built assemblies. This certification guarantees that the board has passed rigorous impulse voltage and short-circuit tests.

In conclusion, the Havells G-Frame Distribution board is a robust and safe power distribution hub. It combines high-capacity protection with organized circuit management. By investing in this hardware, you ensure the highest levels of safety for your industrial infrastructure.
